| Place of Origin: | GUANGZHOU ,CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | Y180-M |
CE Approved Spacious 18 Seats with door Electric Sightseeing Bus Designed For Tourist Attractions
Feature Description
This section has 8, 11, 14 ,18,23 seats, can load a variety of configurations, suitable for campus, villages, airports, terminal.
Dimensions
| L×W×H | 5300×1500×2000mm | |
| F/R Tread | 1220/1270mm | |
| Axle Distance | 2930mm | |
| Curb Weight | 1500kg | |
| Max. loading | 1350kg | |
| Standard Configurations | ||
| Motor | 72V/6.3KW DC motor | |
| Controller | 72V | |
| Body | Steel frame + FRP shell | |
| Batteries | Batteries 6V*12 pcs | |
| Seats | Three-row low back seat (leather fabric + high rebound PU + stainless steel armrest) | |
| Rear view mirror | 2pcs +1 middle mirror | |
| Tire | Steel wheel hub / front 155 R12C Rear 165R13C vacuum meridians | |
| Chassis | Steel frame, surface rust treatment | |
| Steering | Rack and pinion steering machine | |
| Front Suspension | Independent suspension + helical spring cylinder type hydraulic shock absorber | |
| Rear suspension | Full floating rear axle, leaf spring non-independent suspension, cylinder type hydraulic shock absorber | |
| Brake system | Front disc rear drum hydraulic brake, double loop hydraulic brake, parking brake device | |
| Charger | 72V/25A, Input AC 220V/50HZ | |
| Dashboard | LCD meter (including current, voltage, speed, speed, cruising range, battery power, light signal, etc.) | |
| Sound | MP3, professional speaker | |
| Switch | Start switch, light and wiper combination switch, front and rear reversing, interior lights, warning light and reversing alarm rocker switch | |
| Doors and windows | Sheet metal spray door, aluminum alloy sliding toughened glass window, under plexiglass | |
| Color Option | Customized,white,green, yellow, blue. | |

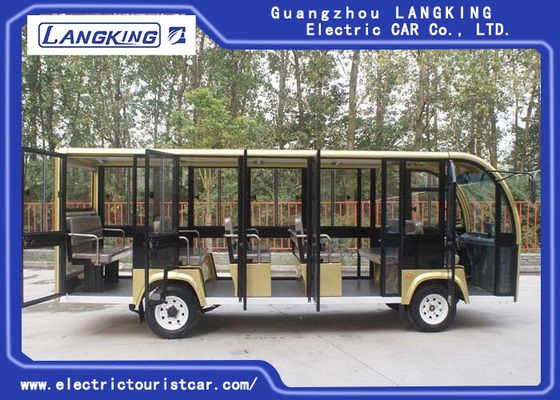

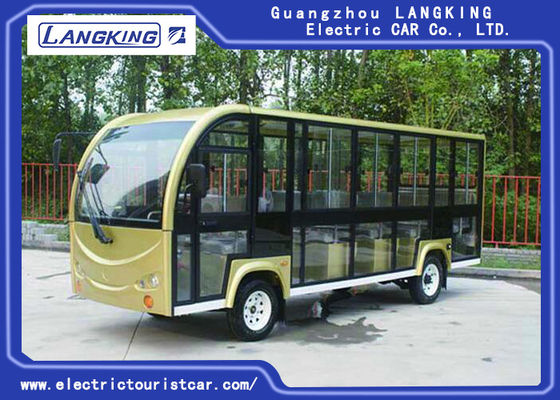

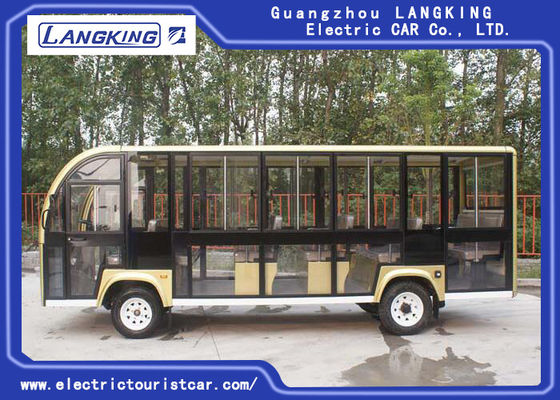

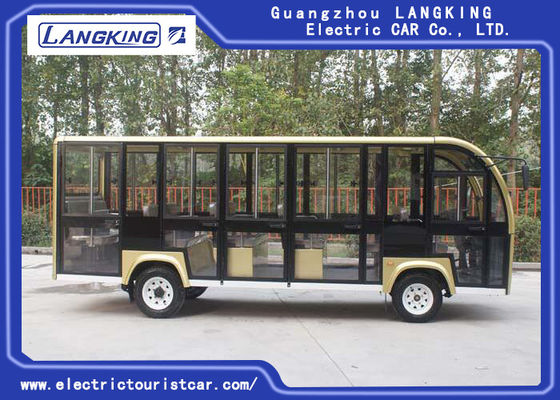

Product Showing:
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
FAQ:
1. What's your warranty time?
All Langking vehicles sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days.
3. What's your payment term?
T/T 30% deposit and the balance payment paid before shipment.
4.Can we also purchase the parts?
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.
5. How do you provide after-sales once customer bought the vehicle from us?
Once you purchase the vehicle from us,then I will provide you manual to learn it and tell you how to fix it.
6.What is your MOQ?
You can order MOQ 1 unit .
7.Can we put the Logo we designed on the vehicle?
Yes, you can put your own Logo on the vehicle where you like.
