| Place of Origin: | GUANGZHOU ,CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | Y140A |
ELECTRIC SHUTTLE BUS /PATROL CAR /GOLF CAR MODEL Y140A 14 PERSON 72V USING HOTEL /REOSRT/ VILLAGE /PARK
Product Advantages:
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts.
3. Brake system: Rear wheel Mechanical Drum Brake
4. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Rear&Side mirror; Different colors and option parts;
5. Good hill climbing ability, the system allows you to customize the car to fit your course;
6. Smart steering system, easy to make forward and backward;
7. Good climbing ablity and can park easily on Hills;
8. Can be easily to be modified to Patrol carts.
The Specification of Electric Partrol Car:
| HS CODE | 8703101900 |
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Assembled) | 2 units |
| Performance: | |
| Passenger capacity | 14 seats |
| Max.Speed | 28 km/h |
| Range(loaded) | 90km |
| Climbing Ability(loaded) | 15% |
| Braking Distance | ≤5m |
| Min.Turning Radius | 5.7m |
| Min.Clearance | 150mm |
| Recharge time | 8~10h |
| Dimensions | |
| L×W×H | 4960×1430×2000mm |
| F/R Tread | 1210/1200mm |
| Axle Distance | 2700mm |
| Curb Weight | 1200kg |
| Max. loading |
1120kg
|
| Standard Configurations | |||
| Motor | 72V/5KW DC motor | ||
| Controller | 72V/400A | ||
| Battery | Maintenance-free battery 6V/170Ah*12pcs | ||
| Body & Roof | High impact fiber glass | ||
| Windshield | See-through Laminated glass | ||
| Seats | Sponge + artificial leather | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front and rear Bumper | ||
| Tire | 155/80 R12 Radial tire (Auto tire) | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Single reduction rack and pinion | ||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights | ||
| Sound system | Radio and MP3 player; Speaker | ||
| Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
| Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ | ||
| Dashboard | Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||

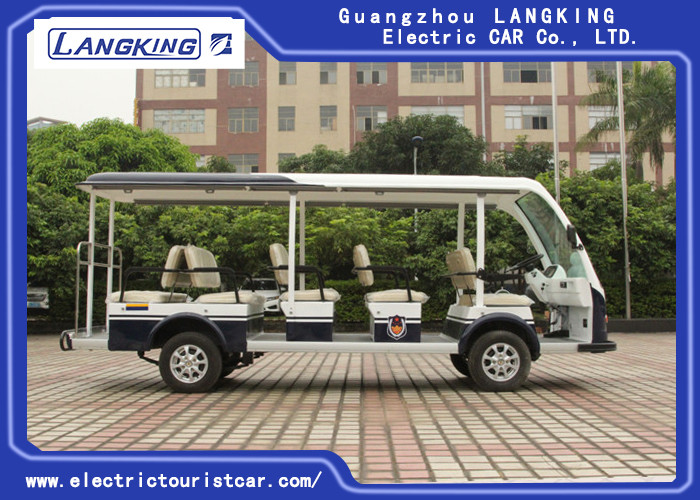

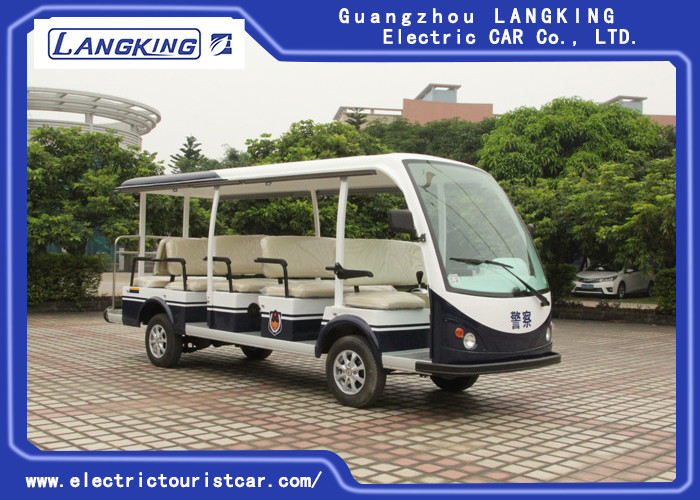

Showing Picture:
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
Our Services:
1. Strict quality control step by step.
2.After market service available.
3. Spare part available.
4. Company’s own shipping port storage warehouse and pre-shipment inspection by our professional engineer.
5.24 hours online service.
