Product Details:
Payment & Shipping Terms:
|
Passenger Capacity: | 4 Seats | Max.Speed: | 28km/h |
---|---|---|---|
Range(loaded): | 85km | Climbing Ability(loaded): | 30% |
Recharge Time: | 8~10h | L×W×H: | 3150×1520×2060mm |
Curb Weight: | 625KG | Max. Loading: | 320KG |
F/R Tread: | 1150/1200mm | Axle Distance: | 1780mm |
High Light: | electric security patrol vehicles,electric security carts |
Battery Powered Electric Security Patrol Vehicles With 2pcs Rear View Mirror
Feather of electric cart:
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
*2) Range will vary depending on temperature, grade, payload and driving style.
HS CODE | 8703101900 |
Qty/20'GP (Assembled) | 1 unit |
Qty/40'GP (Assembled) | 3units |
Performance:
Passenger capacity | 4 seats |
Max.Speed | 28km/h |
Range(loaded) | 85km |
Climbing Ability(loaded) | 30% |
Braking Distance | ≤4m |
Min.Turning Radius | 3.8m |
Min.Clearance | 105mm |
Recharge time | 8~10h |
Standard Configurations:
Motor | 48V/3KW DC motor | ||
Controller | 48V/275A | ||
Battery | Maintenance-free battery 6V/170Ah*8pcs | ||
Body & Roof | High impact fiber glass | ||
Windshield | See-through Laminated glass | ||
Seats | High impact fiber glass | ||
Rear view mirror | 2pcs | ||
Bumper | Front | ||
Tire | 155/80 R12 Radial tire (Auto tire) | ||
Chassis | Welded tubular steel with rust-proof powder coated paint | ||
Steering | Recirculating ball steering gear | ||
Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights,Police light bar | ||
Sound system | Radio and MP3 player; Speaker | ||
Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
Charger | Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50HZ | ||
Dashboard | Forward/reverse switch, turn signal indicator, ignition key, ammeter, speedometer, emergency switch, headlight switch, windscreen wiper switch, horn button, radio and tape player,electric power consumption indicator | ||
Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. |

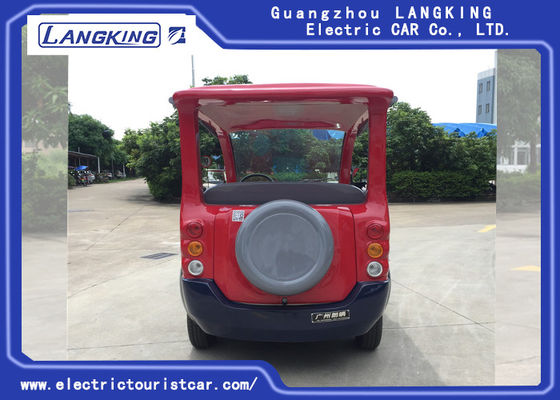

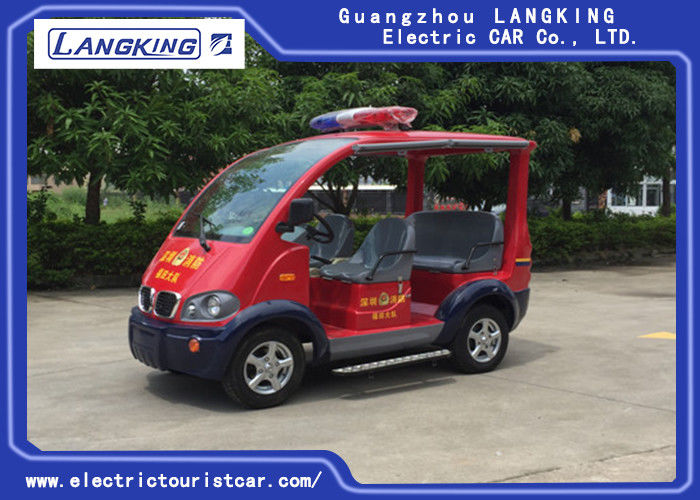

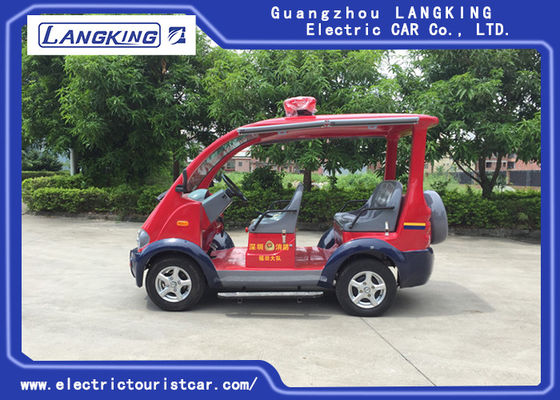

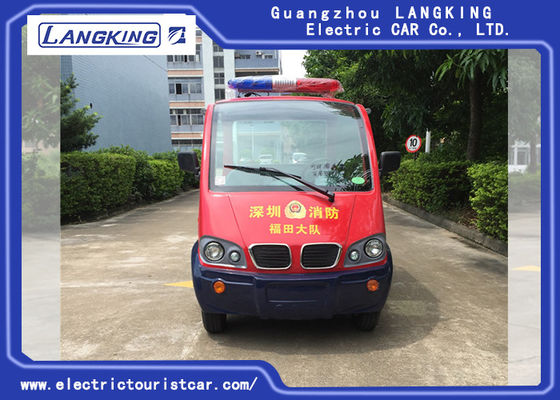

Product Showing:
Efficiency:
Go far with little or no environmental impact. EV people movers feature for batteries that drive 50-60 miles after one full charge.
Universities – Shuttle students, faculty, and parents safely around campus.
Hospitals – Transport patients and staff quickly through medical campuses.
Theme Parks – tours through the park with zero emissions.
Resorts – Just part of the luxury. Move guests through the resort with efficiency and style.
Airports – Shuttle travelers between gates. No need to miss a flight.
Packing & Delivery
High quality: Quality is first, in our company it is not allowed to achieve low price by
decreasing the quality.
Low Price: We have mature production technology and almost 20 years , we have competitive factory.
Fast delivery and Low MOQ.
l Strict quality control step by step.
l After market service available.
l Spare part available.
l Company’s own shipping port storage warehouse and pre-shipment inspection by our professional engineer.
l 24 hours online service
